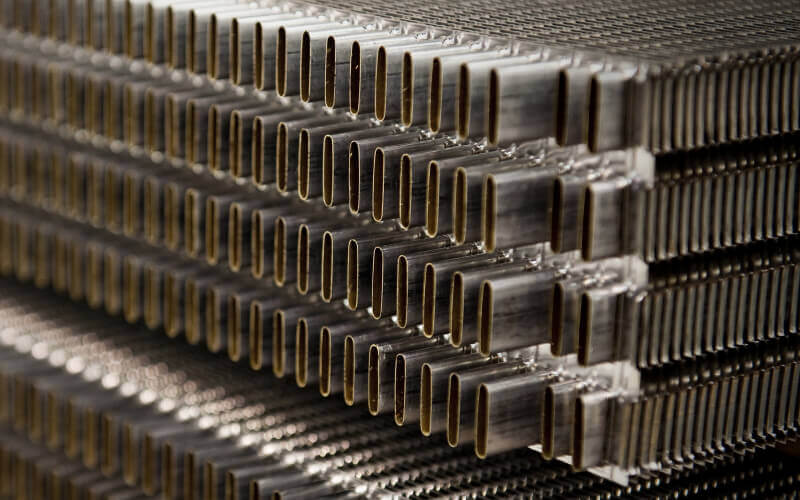

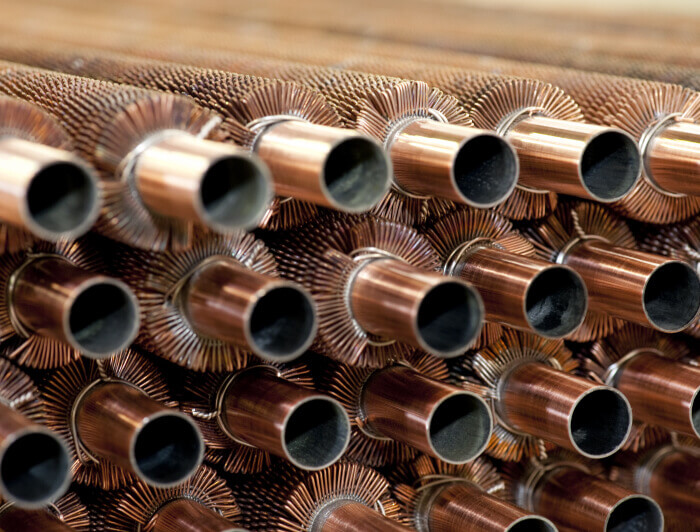

We suggest our copper tube for heat exchangers and condensers since copper's trademark inescapability in warm conductivity, breaking down limitation and quality has made it a bolstered essential metal for Heat exchangers (radiators) and condensers since the beginning of vehicles and trucks.

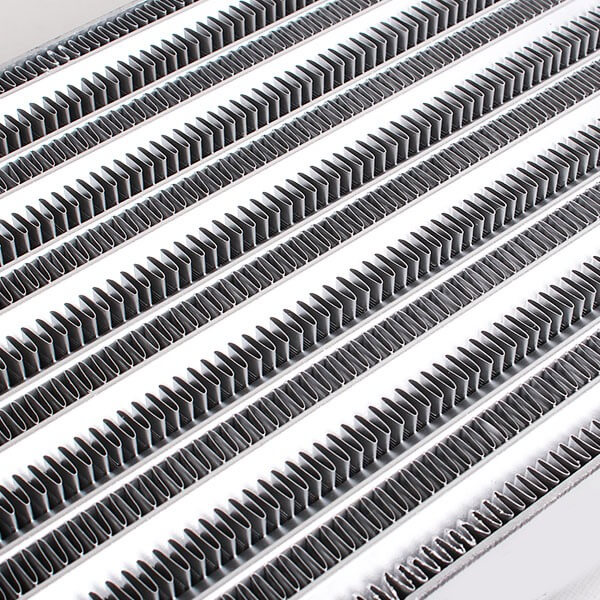

Before long, with new types of progress, our copper load can be utilized to make increasingly minor, lighter and more grounded copper radiators. These radiators will be obviously more typically kind considering how they are sans lead and less troublesome and cleaner to make. Made with a non-fatal, low temperature award dependent on the CuNiSnP framework, they can be brazed in an equivalent vacuum and controlled environment warmers utilized for aluminum radiators and at a practically identical temperature (approx. 600°C). Moreover, since progress is missing, cleaning ensuing to brazing isn't required and no unsafe metals stay in the brazing material.
Product Descriptions :
| Description | Copper pipe, copper tubing |
|---|---|
| Standard | ASTM B280, JIS H3300, AS/NZS1571.JIS3300-2006 |
| Material | TU2, C1020T, C10200, T2, C1100, TP1, C1201T, C1200, TP2, C1220T, C12200, C14200, C19400, etc |
| Size | OD:2mm~610mm WT:0.5mm~80mm Length: 1m, 2m, 3m, 6m, or as required. |
| Application | The copper tubes are made of pure electrolysis copper. They are precise in size and smooth on surface. Besides, they are of good heat conductibility. Furthermore, they are reliable in quality. Thus, they are widely used for heat exchangers, radiators, coolers, electro-heat-up pipe, air conditioner and refrigerators. The straight pipes can be used for oil transportation, brake pipes, water pipes and gas pipes for construction |
Dimensions :
Wall thickness of copper pipe varies with the pipe schedule - the four common standards are named K, L, M, and DWV (Drain/Waste/Vent - non-pressurized), from thickest to thinnest.
| Pipe / Tube Type | Nominal Pipe Size |
O.D. | I.D. | Wall Thickness | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| K | L | M | DWV | K | L | M | DWV | |||
| Copper Tubes for Heat Exchangers | 1/4" | 3/8" | 0.305 | 0.315 | - | - | 0.035 | 0.030 | - | - |
| Copper Tubes for Heat Exchangers | 3/8" | 1/2" | 0.402 | 0.430 | 0.450 | - | 0.049 | 0.035 | 0.025 | - |
| Copper Tubes for Heat Exchangers | 1/2" | 5/8" | 0.527 | 0.545 | 0.569 | - | 0.049 | 0.040 | 0.028 | - |
| Copper Tubes for Heat Exchangers | 5/8" | 3/4" | 0.652 | 0.666 | - | - | 0.049 | 0.042 | - | - |
| Copper Tubes for Heat Exchangers | 3/4" | 7/8" | 0.745 | 0.785 | 0.811 | - | 0.065 | 0.045 | 0.032 | - |
| Copper Tubes for Heat Exchangers | 1" | 1-1/8" | 0.995 | 1.025 | 1.055 | - | 0.065 | 0.050 | 0.035 | - |
| Copper Tubes for Heat Exchangers | 1-1/4" | 1-3/8" | 1.245 | 1.265 | 1.291 | 1.295 | 0.065 | 0.055 | 0.042 | 0.040 |
| Copper Tubes for Heat Exchangers | 1-1/2" | 1-5/8" | 1.481 | 1.505 | 1.527 | 1.541 | 0.072 | 0.060 | 0.049 | 0.042 |
| Copper Tubes for Heat Exchangers | 2" | 2-1/8" | 1.959 | 1.985 | 2.009 | 2.041 | 0.083 | 0.070 | 0.058 | 0.042 |
| Copper Tubes for Heat Exchangers | 2-1/2" | 2-5/8" | 2.435 | 2.465 | 2.495 | - | 0.095 | 0.080 | 0.065 | - |
| Copper Tubes for Heat Exchangers | 3" | 3-1/8" | 2.907 | 2.945 | 2.981 | 3.030 | 0.109 | 0.090 | 0.072 | 0.045 |
