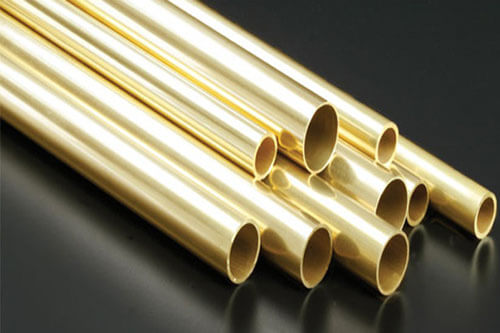

Nexim Alloys is the best performing manufacturers, suppliers, stockists & exporter of Brass Tubes for general Engineering Purpose. Besides, composites containing Brass have gotten a favored decision of numerous purchasers because of its stylish characteristics, yet in addition for its cost viability and the qualities these alloys show, another additional bit of advantage is that these components are natural and environment friendly safe material. These Tubes are made in different size, dimension & thickness and are delivered to customers as per their need & requirement. When it comes to packaging it is done with ultimate care because we know the challenges faced while import & export of product hence we see through it that the products are delivered in good conditions without any harm to it. The Prices for these Brass tubes are completely market friendly & customer oriented. These Tubes are made of best quality raw material and do match national & international quality standard and this helps us to have high demand in the market from our customers.

Chemical Composition of Brass Tubes for General Engineering Purpose :

Constituent	Alloys Designation precent
Cu	63.0 to 68.5
Zn	rem.
Pb	0.10 max
Fe	0.07 max

Specifications :

Item	Brass Tubes For General Engineering Purpose
Standard	GB/T2058-2008,GB/T11091-2005,GB/T18813-2002,GB/T20254-2006,GB/T5231-2001, JISH3300-2006,GB/T5231-2001.GB/T1527-2006.JISH3100-2006,JISH3250-2006,ASTMB152M-06,ASTMB187,ASTMB75M-02,ASTMB42-02,etc
Material	C21000,C22000,C22600,C23000,C24000,C26000,C26130,C26800,C27000, ,C27400,C27200,C46400,C46500,C68800,C70250,C76200,C77000,C75200, C28000,C31600,C32000,C34000,C34500,C35000,C35600,C36000,C36500, C40800,C40850,C40860,C41100,C41500,C42200,C42500,C43000,C43400, C51000,C52100,C53400,C61300,C61400,C63000,C63800,C65100,C65500, C70620,C71500,C71520,C72200,C72500,C73500,C74000,C74500,C2800, C2700,C3600,C2801, H62.
Thickness	0.5mm - 3.5mm
Container Size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)
Length	1m, 2m, 3m, 6m, or as required
Straight	1 - 9mtr
Outside diameter	4mm - 203mm
Surface	mill,polish,bright,hair line,checkered,mirror,brush,antique,sand blast,etching.
Package	Standad export seaworthy package or as required.
Applilcation	electrical equipment,slip steamed building,chemical industry,switch,air cushion, furnace,heat exchangers, lead frame, plating,
Test Certificate	• Manufacturer Test Certificate • Laboratory Test Certificate from Govt. Approved Lab. • Under Third Party Inspection
Container size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM
Contact	If you have any needs,pls feel free to contact me.
Other Product	Brass Strips Brass Shims Brass Bus Bars Brass Flats Brass Sheets Brass Plates Brass Rods Brass Sections Brass Tubes Brass Pipes

Metric OD	Wall Thickness	Imperial OD	Wall Thickness	Nominal Bore mm	WT / Metre
4.76MM	0.71MM	3/16"OD	22G	3.34	0.077
6.35MM	1.63MM	1/4"OD	16G	3.09	0.206
6.35MM	1.22MM	1/4"OD	18G	3.91	0.167
6.35MM	0.91MM	1/4"OD	20G	4.53	0.133
7.94MM	0.91MM	5/16"OD	20G	6.11	0.172
9.52MM	2.03MM	3/8"OD	14G	5.52	0.410
9.52MM	1.63MM	3/8"OD	16G	6.26	0.345
9.52MM	1.22MM	3/8"OD	18G	7.08	0.271
9.52MM	0.91MM	3/8"OD	20G	7.70	0.210
12.7MM	1.63MM	1/2"OD	16G	9.44	0.484
12.7MM	1.22MM	1/2"OD	18G	10.26	0.375
12.7MM	0.91MM	1/2"OD	20G	10.88	0.288
14.29MM	0.91MM	9/16"OD	20G	12.47	0.550
15.88MM	1.63MM	5/8"OD	16G	12.62	0.622
15.88MM	1.22MM	5/8"OD	18G	13.44	0.479
15.88MM	0.91MM	5/8"OD	20G	14.06	0.365
19.05MM	3.25MM	3/4"OD	10G	12.55	1.376
19.05MM	1.63MM	3/4"OD	16G	15.79	0.761
19.05MM	1.22MM	3/4"OD	18G	16.61	0.583
19.05MM	0.91MM	3/4"OD	20G	17.23	0.442
22.22MM	1.63MM	7/8"OD	16G	18.96	0.899
22.22MM	1.22MM	7/8"OD	18G	19.78	0.687
22.22MM	0.91MM	7/8"OD	20G	20.40	0.520
25.4MM	1.63MM	1"OD	16G	22.14	1.038
25.4MM	1.22MM	1"OD	18G	22.96	0.791
25.4MM	0.91MM	1"OD	20G	23.00	0.597
28.58MM	1.63MM	1-1/8"OD	16G	25.32	1.177
31.75MM	1.63MM	1-1/4"OD	16G	28.49	1.316
31.75MM	1.22MM	1-1/4"OD	18G	29.31	0.998
34.92MM	1.63MM	1-3/8"OD	16G	31.66	1.454
38.1MM	3.25MM	1-1/2"OD	10G	31.60	3.040
38.1MM	1.63MM	1-1/2"OD	16G	34.84	1.593
38.1MM	1.22MM	1-1/2"OD	18G	35.66	1.206
44.45MM	3.25MM	1-3/4"OD	10G	37.95	3.600
44.45MM	1.22MM	1-3/4"OD	18G	42.01	1.410
50.8MM	3.25MM	2"OD	10G	44.30	4.140
50.8MM	1.63MM	2"OD	16G	47.54	2.418
50.8MM	1.22MM	2"OD	18G	48.36	1.621
57.2MM	3.25MM	2-1/4"OD	10G	50.70	4.700
63.5MM	3.25MM	2-1/2"OD	10G	57.00	5.248
63.5MM	1.63MM	2-1/2"OD	16G	60.24	2.703
69.85MM	3.25MM	2-3/4"OD	10G	63.35	5.810
76.2MM	3.25MM	3"OD	10G	69.70	6.354
76.2MM	1.63MM	3"OD	16G	72.94	3.258
82.55MM	3.25MM	3-1/4"OD	10G	76.05	6.910
88.90MM	3.25MM	3-1/2"OD	10G	82.40	7.460
95.25MM	3.25MM	3-3/4"OD	10G	88.75	8.020
101.6MM	3.25MM	4"OD	10G	95.10	8.840
101.6MM	1.63MM	4"OD	16G	98.34	4.367
107.95MM	3.25MM	4-1/4"OD	10G	101.45	9.670
133.5MM	3.25MM	5"ID	10G	127.00	11.800
158.9MM	3.25MM	6"ID	10G	152.40	13.900

Chemical composition :

Type No.	Alloy No.	Symbol	Chemical composition
		Plate	Cu	Fe	Pb	Zn
		Ribbon	Cu	Fe	Pb	Zn
BS	C2600	C2600P	68.5-71.5	0.05<	0.05<	Remainder
	C2600	C2600R	68.5-71.5	0.05<	0.05<
	C2680	C2680P	64.0-68.0	0.05<	0.05<	Remainder
	C2680	C2680R	64.0-68.0	0.05<	0.05<	Remainder
	C2801	C2801	59.0-62.0	0.07<	0.07<	Remainder
	C2801	C2801	59.0-62.0	0.07<	0.07<	Remainder
	Others		Neotiation

Specifications :

Cu	63.0 to 68.5
Zn	rem.
Pb	0.10 max
Fe	0.07 max

Related Standards
ISS	IS407 CuZn37
KS	C 2700
JIS	C 2700
ASTM	C27000
BS	C2108
DIN	CuZn37
